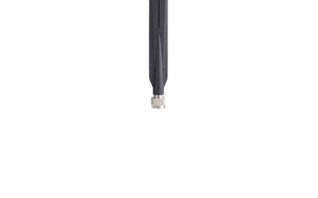

ANT-WDB-ANM-0502 SERIES
5 dBi at 2.4 GHz or 2 dBI at 5 GHz, N-type (male), omnidirectional antenna
High-gain antenna to enhance performance
Waterproof N-type connector
Lightweight
Housing provides IP67 protection
-40 to 80°C operating temperature range
Waterproof N-type connector
Lightweight
Housing provides IP67 protection
-40 to 80°C operating temperature range
Antenna Characteristics
- Frequency: 2.4 to 2.5, 5.1 to 5.9 GHz
- Antenna Type: Omni-directional
- Typical Antenna Gain: 5/2 dBi
- Connector: N-type (male)
- Impedance: 50 ohms
- Polarization: Linear
- HPBW/Horizontal: 360°
- HPBW/Vertical: 65°
- V.S.W.R.: 1:2 max.
- Power Handling: 2 W (max.)
Physical Characteristics
- Weight: 72 g (0.16 lb)
- Length: 189.4 mm (7.46 in)
- Diameter: 26 mm (1.02 in)
- IP Rating: IP67
- Radome Color: Black
- Radome Material: NY66
- Installation: Straight mount
Environmental Limits
- Operating Temperature: -40 to 80°C (-40 to 176°F)
- Storage Temperature (package included): -40 to 80°C (-40 to 176°F)
- Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)
Warranty
- Warranty Period: 1 year
- Details: See www.moxa.com/warranty
