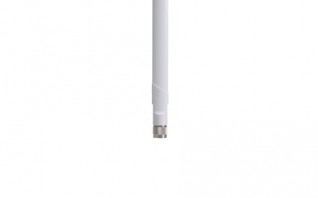

ANT-WDB-ANM-0306 SERIES
3 dBi at 2.4 GHz or 6 dBI at 5 GHz, N-type (male), omnidirectional antenna
Outdoor waterproof N-type connector
Lightweight
Compact form factor
Housing provides IP67 protection
-40 to 75°C operating temperature range
Lightweight
Compact form factor
Housing provides IP67 protection
-40 to 75°C operating temperature range
Antenna Characteristics
- Frequency: 2.4 to 2.5, 4.9 to 5.825 GHz
- Antenna Type: Omni-directional
- Typical Antenna Gain: 3.5/6 dBi
- Connector: N-type (male)
- Impedance: 50 ohms
- Polarization: Linear
- HPBW/Horizontal: 360°
- V.S.W.R.: 2:1 max.
- Power Handling: 1 W max.
Physical Characteristics
- IP Rating: IP67
- Dimensions: Diameter: 22 mm (0.87 in) Length: 215 mm (8.46 in)
- Weight: 68.9 g (0.15 lb)
- Radome Color: White
- Radome Material: PC-9330
- Installation: Straight mount
Environmental Limits
- Operating Temperature: -40 to 75°C (-40 to 167°F)
- Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
- Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)
Warranty
- Warranty Period: 1 year
- Details: See www.moxa.com/warranty
