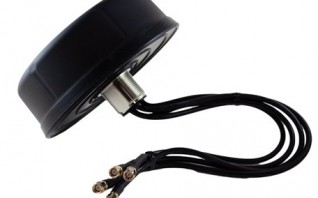

MAT-5G-PA-SM-4-05-1M SERIES
5 dBi at 3300 to 5925 MHz, LTE/NR MIMO panel antenna with 4 SMA connectors (male), 4 1-meter cables
Supports all global sub-6 5G bands
High-gain antenna to enhance performance
4-in-1 LTE combination design
Flexible installation
1-meter cable
SMA connector (male) supported
High-gain antenna to enhance performance
4-in-1 LTE combination design
Flexible installation
1-meter cable
SMA connector (male) supported
Antenna Characteristics
- Frequency: 698 to 960, 1710 to 2700, 3300 to 5925 MHz
- Antenna Type: Panel
- Typical Antenna Gain: 3 dBi @ 698 to 960 MHz 4 dBi @ 1710 to 2700 MHz 5 dBi @ 3300 to 5925 MHz
- Connector: SMA (male)
- Impedance: 50 ohms
- Polarization: Linear Vertical
Physical Characteristics
- Dimensions: φ 141.3 x 50 mm (φ 5.56 x 1.97 in)
- Radome Color: Black
- Radome Material: Plastic
- Installation: Pole mount Screw mount
- Cable: J195
- Cable Length: 1 m
- IP Rating: IP67
Environmental Limits
- Operating Temperature: -30 to 70°C (-22 to 158°F)
- Storage Temperature: -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)
Warranty
- Warranty Period: 1 year
- Details: See www.moxa.com/warranty
