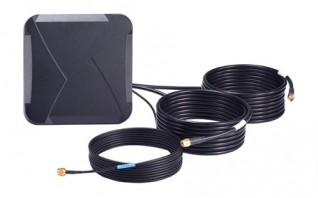

MAT-5G-PA-SM-3-06-3M SERIES
6 dBi MIMO panel antenna with 3 SMA (male) connectors for cellular and GNSS applications, 3 m cable
Supports all global LTE bands
3-in-1 LTE+GNSS combination design
High-gain antenna to enhance performance
Flexible installation
3-meter cable
SMA connector (male) supported
3-in-1 LTE+GNSS combination design
High-gain antenna to enhance performance
Flexible installation
3-meter cable
SMA connector (male) supported
Antenna Characteristics
- Frequency: Cellular: 617 to 960, 1427 to 1510, 1710 to 2170, 2300 to 2690 MHz GNSS: 1561.00, 1575.42, 1602.00 MHz
- Antenna Type: Panel
- Typical Antenna Gain: Cellular:2.64 dBi @ 617 to 698 MHz (5G NR n71)5.23 dBi @ 698 to 824 MHz (LTE 700)4.73 dBi @ 824 to 960 MHz (GSM 850/900)6.66 dBi @ 1427 to 1510 MHz (5G NR n74,75,76)6.14 dBi @ 1710 to 1880 MHz (DCS)5.92 dBi @ 1850 to 1990 MHz (PCS)5.92 dBi @ 1920 to 2170 MHz (UMTS1)5.54 dBi @ 2300 to 2690 MHz (LTE 2600)GNSS:1.21 dBi @ 1561.00 MHz (BDS)1.29 dBi @ 1575.42 MHz (GPS)1.44 dBi @ 1602.00 MHz (GLONASS)With low noise amplifier:30 dB
- Connector: SMA (male)
- Impedance: 50 ohms
- Polarization: Linear Vertical
Physical Characteristics
- Dimensions: 135.95 x 135.95 x 47.44 mm (5.35 x 5.35 x 1.87 in)
- Radome Material: Plastic
- Radome Color: Black
- Installation: Screw mount
- Cable: SNC200
- Cable Length: 3 m
- IP Rating: IPx9K
Environmental Limits
- Operating Temperature: -40 to 85°C (-40 to 185°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)
Warranty
- Warranty Period: 1 year
- Details: See www.moxa.com/warranty
