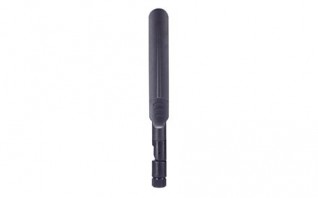

ANT-5G-ASM-03 SERIES
3 dBi GSM/UMTS/LTE/5G NR dipole antenna with SMA (male) connector
Supports all global LTE bands
Lightweight
Tilt and swivel design
Flexible installation
SMA connector (male) supported
Lightweight
Tilt and swivel design
Flexible installation
SMA connector (male) supported
Antenna Characteristics
- Frequency: 617 to 960 MHz 1420 to 1561 MHz 1710 to 2170 MHz 2300 to 2690 MHz
- Antenna Type: Omni-directional
- Typical Antenna Gain: 3.02 dBi @ 617 to 698 MHz (5G NR n71)0.70 dBi @ 698 to 824 MHz (LTE 700)0.63 dBi @ 824 to 960 MHz (GSM 850/900)2.50 dBi @ 1420 to 1561 MHz (LTE Japan B74, 75, 76)2.83 dBi @ 1710 to 1880 MHz (DCS)2.91 dBi @ 1850 to 1990 MHz (PCS)3.65 dBi @ 1920 to 2170 MHz (UMTS1)3.67 dBi @ 2300 to 2690 MHz (LTE 2600)
- Connector: SMA (male)
- Impedance: 50 ohms
- Polarization: Vertical Linear
- HPBW/Horizontal: 360°
Physical Characteristics
- Weight: 35.8 g (0.08 lb)
- Length: 157.5 mm (6.2 in)
- Radome Color: Black
- Radome Material: Plastic
- Installation: Straight mount
Environmental Limits
- Operating Temperature: -40 to 85°C (-40 to 185°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)
Warranty
- Warranty Period: 1 year
- Details: See www.moxa.com/warranty
