ANT-5G-ASM-02 SERIES

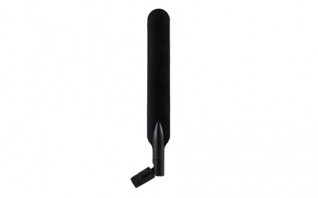

2 dBi LTE/5G NR dipole antenna with SMA (male) connector
ant-5g-asm-02-series
Supports all global 5G bands
Lightweight
Tilt and swivel design
Flexible installation
SMA connector (male) supported

Antenna Characteristics

  • Frequency: 617 to 960 MHz 1452 to 1575.412 MHz 1710 to 2690 MHz 3300 to 4200 MHz 4400 to 5000 MHz 5150 to 7150 MHz
  • Antenna Type: Omni-directional
  • Typical Antenna Gain: 1 dBi @ 617 to 960 MHz2.5 dBi @ 1452 to 1575.412 MHz2.5 dBi @ 1710 to 2690 MHz2.5 dBi @ 3300 to 4200 MHz2.5 dBi @ 4400 to 5000 MHz2.5 dBi @ 5150 to 7150 MHz
  • Connector: SMA (male)
  • Impedance: 50 ohms
  • Polarization: Vertical Linear
  • HPBW/Horizontal: 360°
  • V.S.W.R.: ≤ 3 @ 617 to 960 MHz≤ 3 @ 1452 to 1575.412 MHz≤ 3 @ 1710 to 2690 MHz≤ 3 @ 3300 to 4200 MHz≤ 3 @ 4400 to 5000 MHz≤ 3.5 @ 5150 to 7150 MHz

Physical Characteristics

  • Weight: 30 g (0.07 lb)
  • Length: 205 mm (8.07 in)
  • Radome Color: Black
  • Radome Material: Plastic
  • Installation: Straight mount

Environmental Limits

  • Operating Temperature: -20 to 65°C (-4 to 149°F)
  • Storage Temperature (package included): -30 to 70°C (-22 to 158°F)
  • Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)

Warranty

  • Warranty Period: 1 year
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
ANT-5G-ASM-02 2 dBi LTE/5G NR dipole antenna with SMA (male) connector
