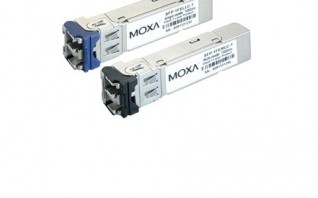

SFP-1FE SERIES
SFP module with 1 100Base single-mode with LC connector for 80 km transmission, -40 to 85°C operating temperature
Digital Diagnostic Monitor Function
IEEE 802.3u compliant
Differential PECL inputs and outputs
TTL signal detect indicator
Hot pluggable LC duplex connector
Class 1 laser product; complies with EN 60825-1
IEEE 802.3u compliant
Differential PECL inputs and outputs
TTL signal detect indicator
Hot pluggable LC duplex connector
Class 1 laser product; complies with EN 60825-1
Ethernet Interface
- Ports: 1
- Connectors: Duplex LC connector
- Optical Fiber: 1
- Optical Fiber: Fast Ethernet SFP
- Optical Fiber: SFP-M
- Optical Fiber: SFP-S
- Optical Fiber: SFP-L
- Optical Fiber: Transceiver Type
- Optical Fiber: Multi-Mode
- Optical Fiber: Single-mode
- Optical Fiber: Fiber Cable Type
- Optical Fiber: OM1/OM2
- Optical Fiber: 62.5/125, 50/125 µm
- Optical Fiber: G.652
- Optical Fiber: G.652
- Optical Fiber: 800 MHz x km
- Optical Fiber: Typical Distance
- Optical Fiber: 2 km
- Optical Fiber: 4 km
- Optical Fiber: 40 km
- Optical Fiber: 80 km
- Optical Fiber: Wavelength
- Optical Fiber: Typical (nm)
- Optical Fiber: 1310
- Optical Fiber: 1310
- Optical Fiber: 1550
- Optical Fiber: TX Range (nm)
- Optical Fiber: 1280 to 1340
- Optical Fiber: 1280 to 1340
- Optical Fiber: 1530 to 1570
- Optical Fiber: RX Range (nm)
- Optical Fiber: 1100 to 1650
- Optical Fiber: 1100 to 1600
- Optical Fiber: 1100 to 1600
- Optical Fiber: Optical Power
- Optical Fiber: TX Range (dBm)
- Optical Fiber: -8 to -18
- Optical Fiber: 0 to -5
- Optical Fiber: 0 to -5
- Optical Fiber: RX Range (dBm)
- Optical Fiber: -3 to -32
- Optical Fiber: -3 to -34
- Optical Fiber: -3 to -34
- Optical Fiber: Link Budget (dB)
- Optical Fiber: 14
- Optical Fiber: 29
- Optical Fiber: 29
- Optical Fiber: Dispersion Penalty (dB)
- Optical Fiber: 2
- Optical Fiber: 3
- Optical Fiber: 1
- Optical Fiber: 1
- Optical Fiber: Note: When connecting the SFP-S or L, we recommend using an attenuator to prevent damage caused by excessive optical power.
Power Parameters
- Power Consumption: Max. 1 W
Environmental Limits
- Operating Temperature: -40 to 85°C (-40 to 185°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- Safety: UL 62368-1 IEC 62368-1 IEC 60825-1
- Maritime: DNV
- EMC: EN 55032/35
- EMI: FCC Part 15B Class Test Report ICES-003: 2020 Issue 7
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV / 2 kV(AC), 0.5 kV(DC); Signal: 1 kV IEC 61000-4-6 CS: 0.15 MHz to 10 MHz: 3 V, 10 MHz to 30 MHz: 3 to 1 V, 30 MHz to 80 MHz: 1V IEC 61000-4-8 PFMF: 1 A/m at 50 Hz IEC61000-4-11 Voltage Dips and Interruption
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
