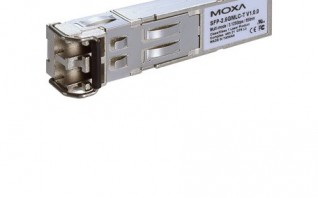

SFP-2.5G SERIES

SFP module with 1 2.5GBaseFX port with LC connector, single-mode, for 20 km transmission, -40 to 85 °C operating temperature
sfp-25g-series
Digital Diagnostic Monitor Function
Hot pluggable LC duplex connector
Class 1 Laser International Safety Standard IEC 60825-1 compliant
RoHS compliant

Ethernet Interface

  • Connectors: Duplex LC connector
  • Optical Fiber: 1.5
  • Optical Fiber: 2.5G Ethernet SFP
  • Optical Fiber: SFP-M
  • Optical Fiber: SFP-S
  • Optical Fiber: SFP-LS
  • Optical Fiber: SFP-SLH
  • Optical Fiber: Transceiver Type
  • Optical Fiber: Multi-mode
  • Optical Fiber: Single-mode
  • Optical Fiber: Single-mode
  • Optical Fiber: Single-mode
  • Optical Fiber: Fiber Cable Type
  • Optical Fiber: OM1
  • Optical Fiber: OM2
  • Optical Fiber: OM3
  • Optical Fiber: OM4
  • Optical Fiber: G.652
  • Optical Fiber: G.652
  • Optical Fiber: G.652
  • Optical Fiber: Typical Distance
  • Optical Fiber: 170 m
  • Optical Fiber: 200 m
  • Optical Fiber: 550 m
  • Optical Fiber: 600 m
  • Optical Fiber: 5 km
  • Optical Fiber: 20 km
  • Optical Fiber: 45 km
  • Optical Fiber: Wave-length
  • Optical Fiber: Typical (nm)
  • Optical Fiber: 850
  • Optical Fiber: 1310
  • Optical Fiber: 1310
  • Optical Fiber: 1550
  • Optical Fiber: TX Range (nm)
  • Optical Fiber: 830 to 860
  • Optical Fiber: 1260 to 1360
  • Optical Fiber: 1260 to 1360
  • Optical Fiber: 1520 to 1580
  • Optical Fiber: RX Range (nm)
  • Optical Fiber: 830 to 860
  • Optical Fiber: 1260 to 1360
  • Optical Fiber: 1260 to 1360
  • Optical Fiber: 1500 to 1600
  • Optical Fiber: Optical Power
  • Optical Fiber: TX Range (dBm)
  • Optical Fiber: -1 to -7.5
  • Optical Fiber: -3 to -9
  • Optical Fiber: 0 to -5
  • Optical Fiber: +1 to +4
  • Optical Fiber: Rx Range (dBm)
  • Optical Fiber: 0 to -13.5
  • Optical Fiber: -3 to -15
  • Optical Fiber: 0 to -16
  • Optical Fiber: +1 to -19
  • Optical Fiber: Link Budget (dB)
  • Optical Fiber: 6
  • Optical Fiber: 6
  • Optical Fiber: 11
  • Optical Fiber: 15
  • Optical Fiber: Dispersion Penalty (dB)
  • Optical Fiber: 2.5
  • Optical Fiber: 2
  • Optical Fiber: 1
  • Optical Fiber: 1.5
  • Optical Fiber: Typical Distance: To reach the typical distance of specified fiber transceiver, please refer to formula: Link budget(dB) > dispersion penalty(dB) + total link loss(dB)

Power Parameters

  • Power Consumption: Max. 1 W

Environmental Limits

  • Operating Temperature: -40 to 85°C (-40 to 185°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • Safety: IEC 60825-1 UL 62368-1 IEC 62368-1
  • EMC: EN 55032/35
  • EMI: FCC 15B Test ReportICES-003: 2020 Issue 7
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV/2 kV(AC), 0.5 kV(DC); Signal: 1 kV IEC 61000-4-6 CS: 0.15 MHz to 10 MHz: 3 V, 10 MHz to 30 MHz: 3 to1 V, 30 MHz to 80 MHz: 1 V IEC 61000-4-8 PFMF: 1 A/m at 50 Hz IEC 61000-4-11: Voltage Dips & Interruption

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
SFP-2.5GSLC-T SFP module with 1 2.5GBaseFX port with LC connector, single-mode, for 5 km transmission, -40 to 85 °C operating temperature
SFP-2.5GLSLC-T SFP module with 1 2.5GBaseFX port with LC connector, single-mode, for 20 km transmission, -40 to 85 °C operating temperature
SFP-2.5GSLHLC-T SFP module with 1 2.5GBaseFX port with LC connector, single-mode, for 45 km transmission, -40 to 85 °C operating temperature
SFP-2.5GMLC-T SFP module with 1 2.5GBaseFX port with LC connector, multi-mode, for 170, 200, 550, 600 m transmission, -40 to 85 °C operating temperature
