SFP-10G SERIES

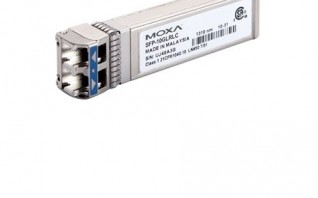

SFP+ module with 1 10GBase-ER port, LC connector for 40 km transmission, -40 to 85°C operating temperature
Digital Diagnostic Monitor Function
Compliant with IEEE 802.3ae
SFF-8432 SFP+ MSA compliant
Hot pluggable LC duplex connector
Class 1 Laser International Safety Standard IEC 60825-1 compliant
RoHS compliant
Compliant with IEEE 802.3ae
SFF-8432 SFP+ MSA compliant
Hot pluggable LC duplex connector
Class 1 Laser International Safety Standard IEC 60825-1 compliant
RoHS compliant
Ethernet Interface
- Connectors: Duplex LC connector
- Optical Fiber: Note: When connecting the SFP-ER or SFP-ZR, we recommend using an attenuator to prevent damage caused by excessive optical power.
- Optical Fiber: 10G Ethernet SFP
- Optical Fiber: SFP-SR
- Optical Fiber: SFP-LR
- Optical Fiber: SFP-ER
- Optical Fiber: SFP-ZR
- Optical Fiber: Transceiver Type
- Optical Fiber: Multi-mode
- Optical Fiber: Single-mode
- Optical Fiber: Single-mode
- Optical Fiber: Single-mode
- Optical Fiber: Fiber Cable Type
- Optical Fiber: OM1
- Optical Fiber: OM2
- Optical Fiber: OM3
- Optical Fiber: OM4
- Optical Fiber: G.652
- Optical Fiber: G.652
- Optical Fiber: G.652
- Optical Fiber: Typical Distance
- Optical Fiber: 33 m
- Optical Fiber: 82 m
- Optical Fiber: 300 m
- Optical Fiber: 400 m
- Optical Fiber: 10 km
- Optical Fiber: 40 km
- Optical Fiber: 80 km
- Optical Fiber: Wave-length
- Optical Fiber: Typical (nm)
- Optical Fiber: 850
- Optical Fiber: 1310
- Optical Fiber: 1550
- Optical Fiber: 1550
- Optical Fiber: TX Range (nm)
- Optical Fiber: 840 to 860
- Optical Fiber: 1260 to 1355
- Optical Fiber: 1530 to 1565
- Optical Fiber: 1530 to 1565
- Optical Fiber: RX Range (nm)
- Optical Fiber: 840 to 860
- Optical Fiber: 1260 to 1355
- Optical Fiber: 1530 to 1565
- Optical Fiber: 1530 to 1565
- Optical Fiber: Optical Power
- Optical Fiber: TX Range (dBm)
- Optical Fiber: -1 to -5
- Optical Fiber: -8.2 to +0.5
- Optical Fiber: -1 to +2
- Optical Fiber: 0 to +4
- Optical Fiber: Max. Rx (dBm)
- Optical Fiber: +0.5
- Optical Fiber: +0.5
- Optical Fiber: -1
- Optical Fiber: -7
- Optical Fiber: Link Budget (dB)
- Optical Fiber: 8.3
- Optical Fiber: 7.4
- Optical Fiber: 15
- Optical Fiber: 23
- Optical Fiber: Dispersion Penalty (dB)
- Optical Fiber: 3.9
- Optical Fiber: 3.2
- Optical Fiber: 3
- Optical Fiber: 3
- Optical Fiber: Note: When connecting the SFP-ER or SFP-ZR, we recommend using an attenuator to prevent damage caused by excessive optical power.
- Optical Fiber: Typical Distance: To reach the typical distance of specified fiber transceiver, please refer to formula: Link budget(dB) > dispersion penalty(dB) + total link loss(dB)
Power Parameters
- Power Consumption: Max. 2.2 W
Environmental Limits
- Operating Temperature: -40 to 85°C (-40 to 185°F) Note: When using the SFP-10GZRLC-T with the ICS-G7526A/G7528A/G7826A/G7828A and the MDS-G4000-4XGS/MDS-G4000-L3-4XGS Series, the maximum temperature is -10 to 60°C (14 to 140°F).
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- Safety: UL 62368-1 IEC 62368-1 IEC 60825-1
- EMC: EN 55032/35
- EMI: FCC 15B Test ReportICES-003: 2020 Issue 7
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV/2 kV(AC), 0.5 kV(DC); Signal: 1 kV IEC 61000-4-6 CS: 0.15 MHz to 10 MHz: 3 V, 10 MHz to 30 MHz: 3 to 1 V, 30 MHz to 80 MHz: 1V. IEC 61000-4-8 PFMF: 1 A/m at 50 Hz IEC 61000-4-11: Voltage Dips & Interruption
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
