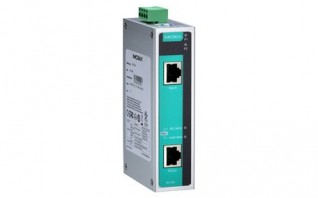

INJ-24A SERIES

Gigabit high-power PoE+ injector, max. output of 36W/60W at 24 or 48 VDC by 2-pair/4-pair mode, 0 to 60°C operating temperature
inj-24a-series
High-power mode provides up to 60 W
DIP switch configurator and LED indicator for PoE management
3 kV surge resistance for harsh environments
Mode A and Mode B selectable for flexible installation
Built-in 24/48 VDC booster for redundant dual power inputs
-40 to 75°C operating temperature range (-T model)

Ethernet Interface

  • 10/100/1000BaseT(X) Ports (RJ45 connector): 1 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed
  • PoE Ports (10/100/1000BaseT(X), RJ45 connector): 1 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed
  • PoE Pinout: Default: V+, V+, V-, V- for pins 4, 5, 7, 8 (Midspan, MDI, Mode B) Custom DIP switch setting: V+, V+, V-, V- for pins 1, 2, 3, 6 (Endspan, MDI, Mode A)
  • Standards: IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3af/at for PoE/PoE+ output IEEE 802.3u for 100BaseT(X)

Power Parameters

  • Input Voltage: 24/48 VDC
  • Operating Voltage: 22 to 57 VDC
  • Input Current: 2.71 A @ 24 VDC
  • Power Consumption (Max.): Max. 5.29 W full loading without PDs’ consumption
  • Power Budget: Max. 60 W for total PD consumption Max. 60 W for each PoE port
  • Connection: 1 removable 4-contact terminal block(s)
  • Overload Current Protection: Supported
  • Reverse Polarity Protection: Supported

Physical Characteristics

  • Housing: Metal
  • IP Rating: IP30
  • Dimensions: 30 x 115 x 78.8 mm (1.19 x 4.53 x 3.10 in)
  • Weight: 245 g (0.54 lb)
  • Installation: DIN-rail mounting Wall mounting (with optional kit)

Environmental Limits

  • Operating Temperature: 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • Safety: UL 508 EN 62368-1
  • EMC: EN 55032/24
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 3 kV; Signal: 3 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • Freefall: IEC 60068-2-31
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6

MTBF

  • Time: 2,407,739 hrs
  • Standards: Telcordia (Bellcore), GB

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
INJ-24A-T Gigabit high-power PoE+ injector, max. output of 36W/60W at 24 or 48 VDC by 2-pair/4-pair mode, -40 to 75°C operating temperature
INJ-24A Gigabit high-power PoE+ injector, max. output of 36W/60W at 24 or 48 VDC by 2-pair/4-pair mode, 0 to 60°C operating temperature
