Connection boxes with 8 RS-232 serial ports

Connector

• Board-side Connector: DB62(male) x 1
• Device-side Connector: DB25 (female) x 8
• Connection Cable: DB62 (male) to DB62 (male) 1.5 m connection cable for connecting to the serial board

LED Interface

• LED Indicators: TxD, RxD indicators for each device-side port

Serial Interface

• Baudrate: 50 bps to 921.6 kbps

Physical Characteristics

• Dimensions: 247 x 108 x 35 mm (9.72 x 4.25 x 1.38 in)

Warranty

• Warranty Period: 1 year
• Details: See www.moxa.com/warranty

Available Models

Model No.	Description	Quantity
OPT 8A	M62 to 8 x DB25 female connection box with DB62 male to DB62 female serial cable
OPT 8S+	VHDCI 68 to 8 x DB25 female connection box with surge protection
OPT 8B	M62 to 8 x DB25 male connection box with DB62 male to DB62 female cable, 1.5 m
OPT 8S	M62 to 8 x DB25 female connection box with surge protection and a DB62 male to DB62 male cable, 1.5 m
OPT8-RJ45+	VHDCI 68 to 8 x RJ45 (8-pin) connection box

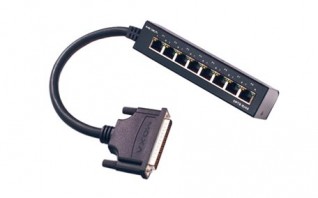

OPT8-RJ45	M62 to 8 x RJ45 (8-pin) connection box, 30 cm
OPT 8A+	VHDCI 68 to 8 x DB25 female connection box
OPT8-M9	M62 to 8 x DB9 male connection box, DB62 male to DB62 female cable, 1.5 m
OPT 8B+	VHDCI 68 to 8 x DB25 male connection box
OPT8-M9+	VHDCI 68 to 8 x DB9 male connection box
